Full Motion Video

→ Obtaining Telemetry Data (SRT)

Follow along to learn the necessary steps to analyze a flight using the Full Motion Video!

Uploading Our MP4 and SRT Files

1. After you open your project Select “Create” then the “Video” button



2. Change the File Name within they Layer Name



3. Select “Choose Files” within Upload Video tab



4. Ensure we Import Both the MP4 and the SRT Files, followed by the open button on the bottom left corner



5. Confirm the MP4 and SRT Files are imported by the ✅ on the right corner. If you see a ❌ that means a File is not uplaoded. Without a SRT File we have no Georeferencing



6. You can Select “Play Video” to make sure its the correct video before you upload it



7. Once uploaded everyone in the Project will be able to see it



8. When its uploaded you will see “Upload Complete” and it will appear within the Layers Panel

3 Views of our Video

1. By hovering our Cursor over our Video Later we can select on the Play Button located beside our Video Name



2. This will bring up our minimized View



3. We can also select on the Layers panel and within the inspector Panel we can Select “Play Video”



4. The last way is by selecting on the Video Icon within our map view

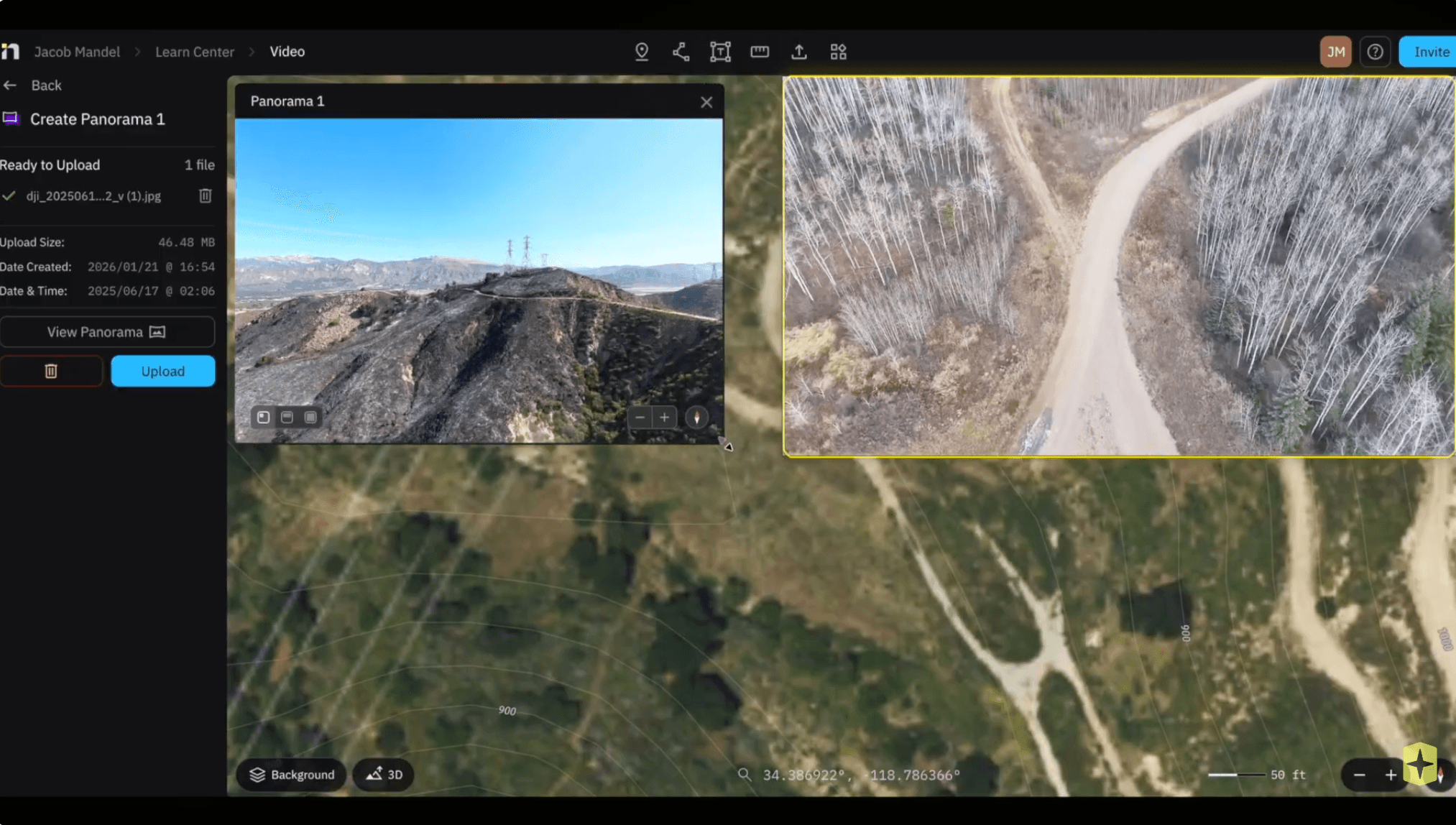

5. Within our minimized View we can hover our cursor over top of the video to View within a full screen View



6. We can also select the Elipsies (3 dots) then select the Download or the Play in Picture tab to View our video on a external tab. You can video your video while view other items within your project

More Options

1. We can select on More option to Enable or Disable the Crosshair, Flight Path, Field of View and Drone Icon. As well as your Video Quality

3D Mode

1. In the bottom left corner You can select on 3D to view your Video as a 3D Layer

Exporting your Video

1. After selecting on the Video in the Layers Panel, the Inspector Panel will Appear. Select on the Data Tab



2. Select on the Export Drop down and select the MP4 File or Flight Path you want to download

Deleting your Video

1. After selecting on the Video in the Layers Panel, the Inspector Panel will Appear. Select on the Data Tab



2. In the bottom right Corner Select Delete and confirm you want to delete the layer

Full Motion Video requires MP4 and SRT files in order to work properly.

If you don’t know how to turn on SRT files, refer to Obtaining Telemetry Data (SRT)
